N1-X Evolution Extreme Catback Exhaust - 2015~2017 Lexus NX200t

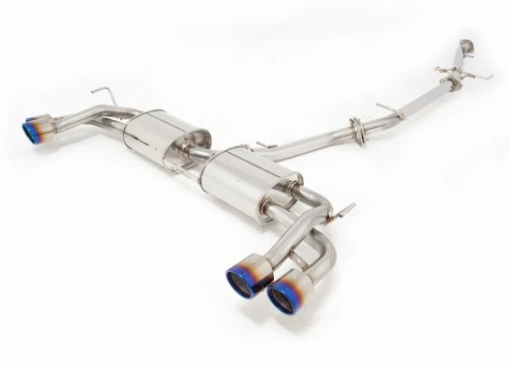

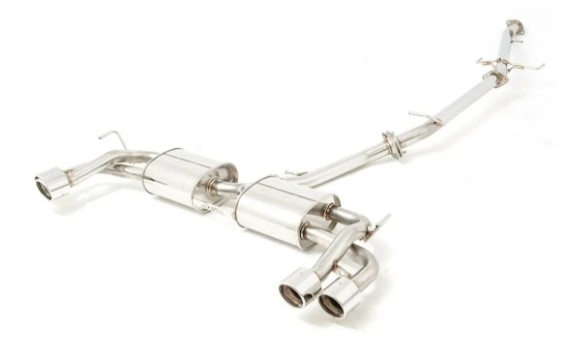

N1-X Evolution Extreme Muffler (Stainless & Titanium)
2015-2017 Lexus NX200t FWD/AWD

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form.

PRODUCT FEATURES:

• High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
• Matched and manufactured for select chassis
• Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results

Bolt-On	Yes
Part Number	- 164KT206-SSP (Stainless) - 164KT206P (Titanium)
Year	2015, 2016, 2017
Make	Lexus
Model	NX200t
Body Style	5-Door SUV
Engine	8AR-FTS
Chassis	AGZ10, AGZ15
Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	65mm. x 2 - 50mm. x 4
Tip Diameter	93mm. x 4
Pieces	4
Exhaust Tip Style	Oval-Dual wall rolled, Angle cut
Piping Material	SUS304 Stainless Steel
Muffler Material	SUS304 Stainless Steel
Muffler Tip Material	- SUS304 Stainless Steel - Titanium
System Weight	45.20 lbs. (Includes Full Exhaust System, gaskets and hardware pack) (Stock- 62.20 lbs.)
Sound Level	Sound Level: 89.7 dB @ 4,500 RPM. Modular design->Midpipe and Rear Section can be interchanged with factory exhaust components
Special Notes	NOTE: Do Not Use metal polish, cleaners, solvents, etc. containing abrasive chemicals/substances when cleaning titanium tip
