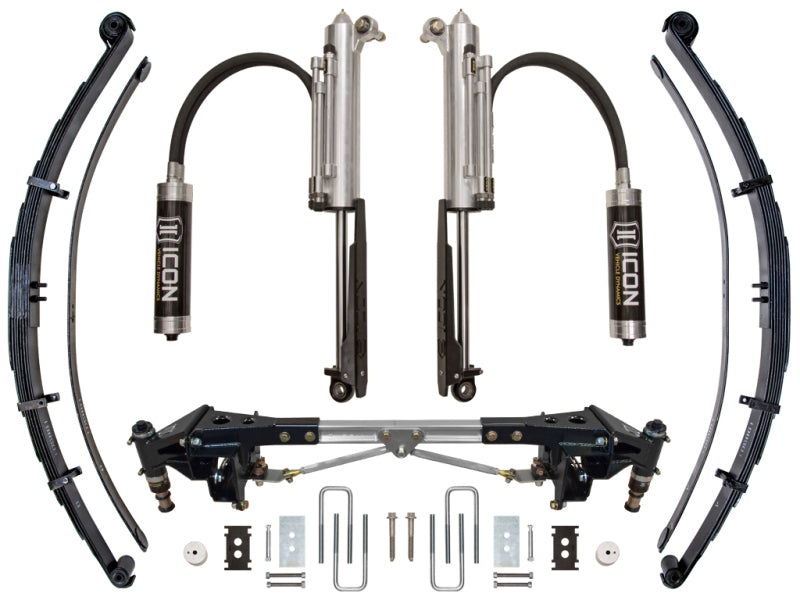

ICON 10-14 Ford Raptor RXT System

ICON RXT Multi-Rate Leaf Spring: To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Raptor setup imaginable. Features like tip inserts and leaf separators add to ride comfort, while a triple military wrapped front and rear half wrapped eyelet increases durability and strength of the leaf spring. A rebound leaf was added to reduce the axle wrap of the Raptor, which was another issue that has been found through ICON’s extensive testing. To increase the ride quality of the truck and gain additional droop travel, the spring rate has been lowered slightly. While most Raptor owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a chase rack, spare tires and parts, or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack, yielding an additional 10% or 20% spring rate that will handle heavier vehicles.

This Part Fits:
